This trailer has a dockable bed that needs to be bracketed for transport.

Prepare for transport:

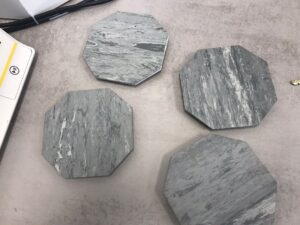

1. Remove the covers from the bracket locators on the floor around the bed. ****CAUTION THESE ARE MAGNETIC AND MUST BE KEPT AWAY FROM THE SCANNER****

2. Set the brake to position 2.

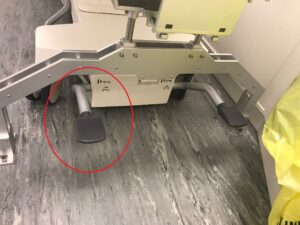

3. Undock the bed using the left pedal at the front, press this pedal all the way down.

4. Pull the bed away from the scanner.

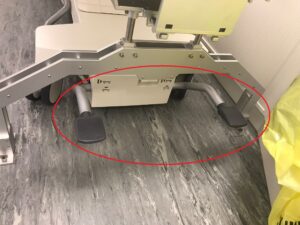

The height of the bed can be adjusted using the pedals on the front.

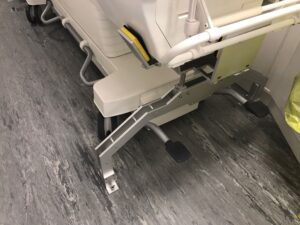

5. Place the front bracket in the locators and secure using the bolts.

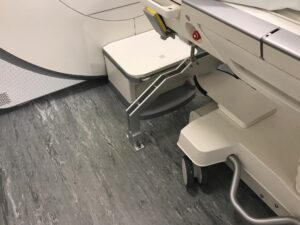

6. Move the bed into position over the front bracket then place the rear bracket in the locators and secure using the bolts.

7. lower the bed onto the brackets, make sure front bracket goes under the bed roll holder.

8. Ensure all the padded guides are in position.

9. IMPORTANT set the brake position to 3.

Setting up:

1. Use the front pedals to raise the bed
2. Remove the back bracket.
3. Move the bed away from the front bracket.
4. Remove the front bracket.
5. Place the bed brake back into position 3 DO NOT dock the bed back in the scanner.
6. Store the brackets and place the bolts in the cupboard.
7. Replace the covers over the bracket locators on the floor.
